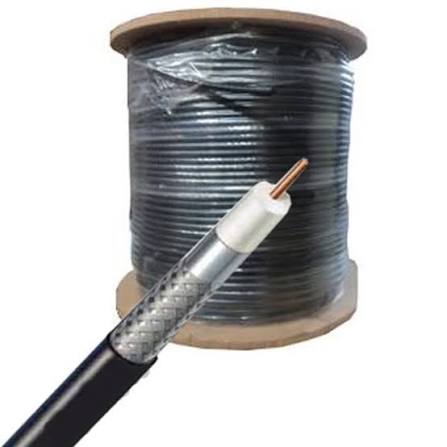

15% OFFPOLYCAB RG-06 CCS Co-Axial Cable 100 Meter
Buy POLYCAB RG-06 CCS Co-Axial Cable – 100 Meter Unarmoured for reliable signal transmission in CATV, broadband, television and other low-power video/broadband applications. This 75 Ohm Polycab RG-6 CCS coaxial cable features a copper-clad steel (CCS) conductor, physical foam HDPE insulation, aluminium foil shielding, aluminium alloy wire braiding, jelly flooding and a black flame-retardant PVC sheath.
Technical Details
- Brand: POLYCAB
- Product Type: Co-Axial Cable
- Cable Type: RG-6 CCS
- Product Variant: RG-06 CCS
- Length: 100 Meter
- Construction: Unarmoured
- Nominal Impedance: 75 ± 3 Ohm
- Conductor: Solid Copper Clad Steel (CCS)
- CCS Conductivity: 21%
- Insulation: Physical Foam HDPE
- Primary Shield: Bonded Aluminium Foil
- Secondary Shield: Aluminium Alloy Wire
- Shielding: Aluminium foil + aluminium alloy braid
- Filling: Jelly flooded
- Outer Sheath: Extruded flame-retardant PVC
- Sheath Colour: Black
- Diameter over Dielectric: Approx. 4.57 mm
- Overall Diameter: Approx. 6.8 mm
- Capacitance: 53 ± 3 pF/m
- Velocity of Propagation: 82%
- Maximum DC Conductor Resistance at 20°C: 112 Ω/km
- Operating Temperature: Maximum 70°C
- Recommended Bending Radius: 20 × overall diameter
- Standard: ANSI/SCTE 74:2011
- Applications: CATV, low-power video signals, broadband signals and related coaxial installations.
The 100-meter unarmoured coaxial cable is suitable for internal and external installations where a dependable coaxial connection is required. Polycab states that its coaxial cables are designed for smooth high-frequency signal transmission and offer low attenuation, higher bandwidth, minimum structural return loss and moisture protection.
Purchase Polycab RG-6 CCS 100m coaxial cable for residential, commercial, CATV and communication installations. Customers looking to buy Polycab coaxial cable in Pune, Mumbai, Delhi, Bangalore, Hyderabad, Chennai, Ahmedabad, Kolkata, Jaipur and other locations across India can choose this 100-meter unarmoured RG-6 CCS cable, subject to local availability.
