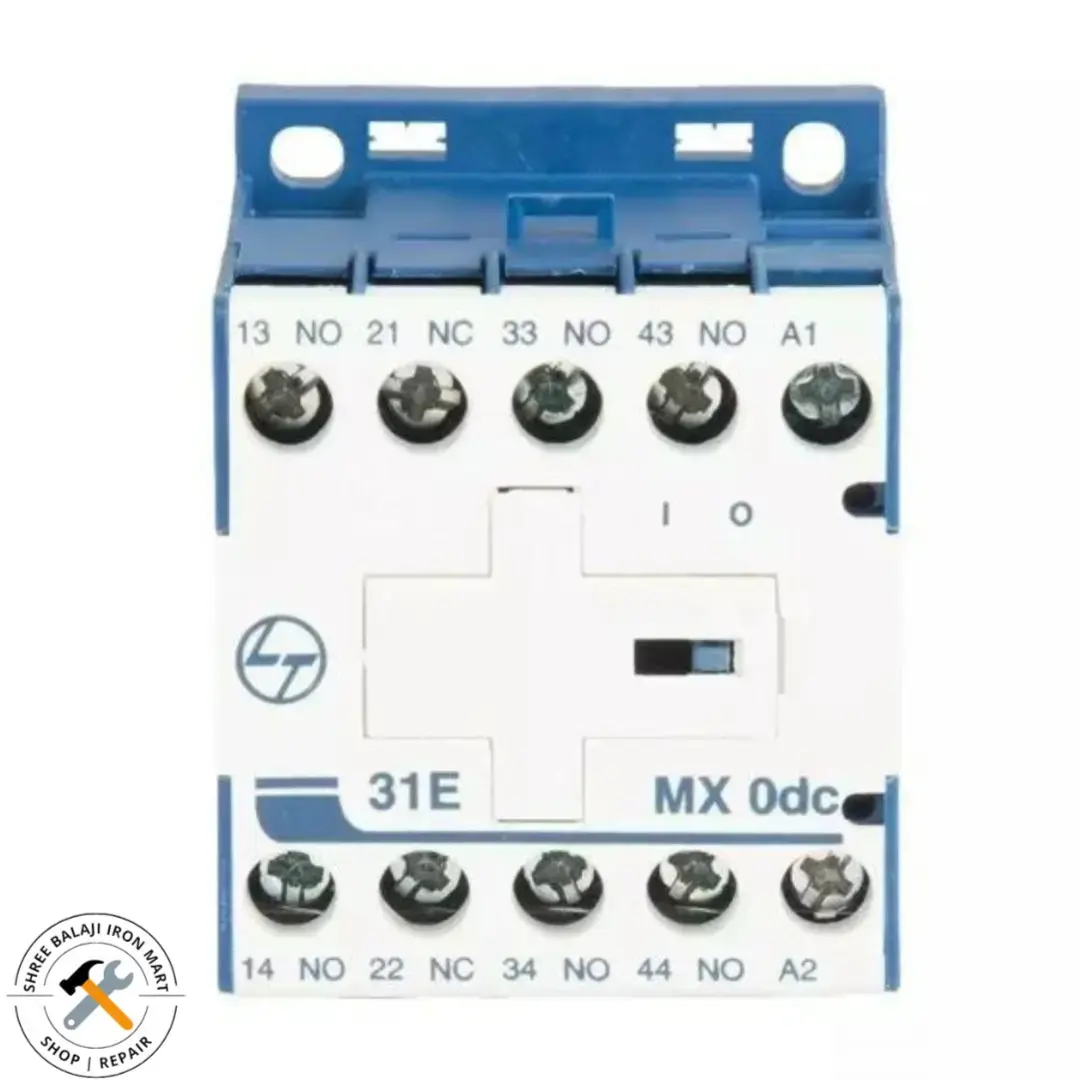

L&T MX0 DC Control Relay 8536 MX0 31E (3NO + 1NC) CS94028 – 4-Pole Auxiliary Contactor

Buy L&T MX0 DC Control Relay 8536 MX0 31E (3NO + 1NC), Cat. No. CS94028, designed for auxiliary control and switching applications in industrial electrical systems. The L&T MX0 31E provides a 3 Normally Open (3NO) + 1 Normally Closed (1NC) contact configuration, offering four auxiliary contacts for control circuits. L&T documentation identifies CS94028 as the catalogue number for the DC-control MX0 31E.

The MX0 DC range is specified with standard DC control coil voltages of 24V, 110V and 220V, while the contact arrangement is rated AC-15, 4A at 415V. The MX0 DC design also incorporates an inbuilt surge suppressor.

Technical Details

• Brand: L&T

• Product Type: Control Relay / Auxiliary Contactor

• Series: MX0

• Control Type: DC

• Model: MX0 31E

• Catalogue / Part Number: CS94028

• HSN / Product Classification: 8536

• Contact Configuration: 3NO + 1NC

• Normally Open Contacts: 3

• Normally Closed Contacts: 1

• Number of Poles: 4

• Utilization Category: AC-15

• Rated Current: 4A at 415V

• Standard DC Coil Voltages: 24V, 110V, 220V

• Surge Protection: Inbuilt surge suppressor for MX0 DC

• Rated Insulation Voltage (Ui): 690V, according to available MX0 technical documentation

The L&T MX0 31E CS94028 control relay is suitable for electrical control panels, industrial automation, machine-control circuits, motor-control applications and auxiliary switching requirements. Purchase L&T CS94028 for industrial electrical projects and control-panel requirements in Pune, Mumbai, Delhi, Bengaluru, Chennai, Hyderabad, Ahmedabad, Kolkata and other locations across India.
