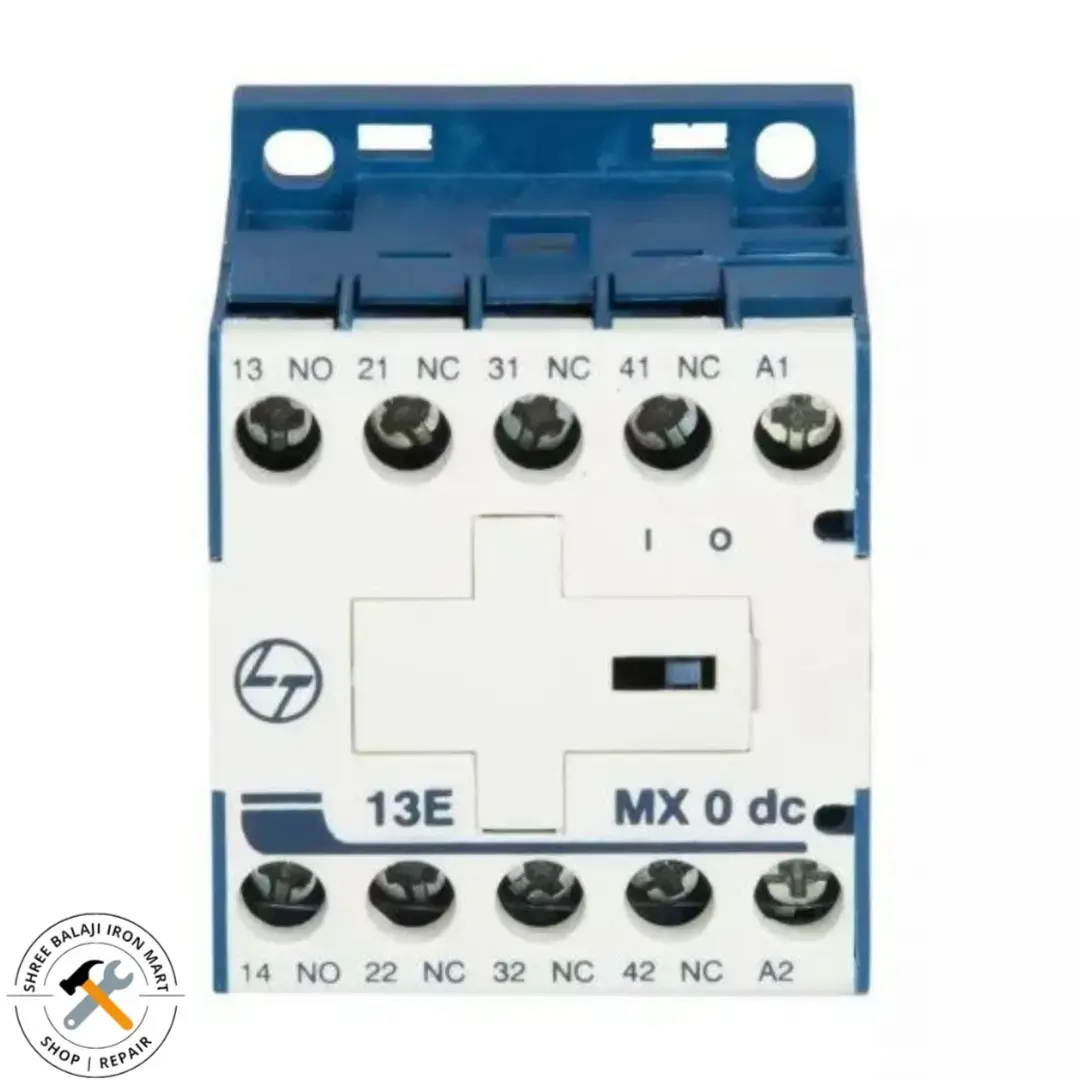

L&T MX0 DC Control Relay 8536 MX0 13E (1NO + 3NC) CS94043 – Auxiliary Contactor

Buy L&T MX0 DC Control Relay 8536 MX0 13E (1NO + 3NC), Cat. No. CS94043, an auxiliary control relay designed for electrical control and switching applications. The L&T MX0 13E features 1 Normally Open (NO) and 3 Normally Closed (NC) contacts, providing a four-pole contact configuration for industrial control circuits. L&T documentation identifies CS94043 as the catalogue number for the DC-control MX0 13E.

The MX0 DC range is specified for 24V, 110V and 220V DC control coil voltages. Its auxiliary contacts have an AC-15 rating of 4A at 415V. The MX0 DC design also incorporates an inbuilt surge suppressor.

Technical Details

• Brand: L&T

• Product Type: Control Relay / Auxiliary Contactor

• Series: MX0

• Type: MX0 DC

• Model: MX0 13E

• Catalogue / Part Number: CS94043

• Product Classification: 8536

• Control Type: DC

• Contact Configuration: 1NO + 3NC

• Normally Open Contacts: 1

• Normally Closed Contacts: 3

• Total Contacts / Poles: 4

• Utilization Category: AC-15

• Rated Current: 4A at 415V

• Standard DC Coil Voltages: 24V, 110V and 220V

• Rated Insulation Voltage (Ui): 690V

• Conventional Thermal Current (Ith): 10A

• Protection Degree: IP20

• Electrical Durability: 1.5 million operations under AC-15 at 415V, according to available technical documentation

• Surge Protection: Inbuilt surge suppressor for MX0 DC

• Applicable Standards: IS/IEC 60947-5-1, IEC 60947-5-1 and EN 60947-5-1

• Typical Applications: Industrial control panels, automation systems, machine control, motor-control circuits and auxiliary switching

• Standard Package: 10 units according to the cited L&T product documentation.

The L&T MX0 13E CS94043 is suitable for industrial control panels, automation systems, machine-control circuits, motor-control applications and auxiliary switching requirements. Purchase L&T CS94043 for electrical projects and industrial requirements in Pune, Mumbai, Delhi, Bengaluru, Chennai, Hyderabad, Ahmedabad, Kolkata and other locations across India.
