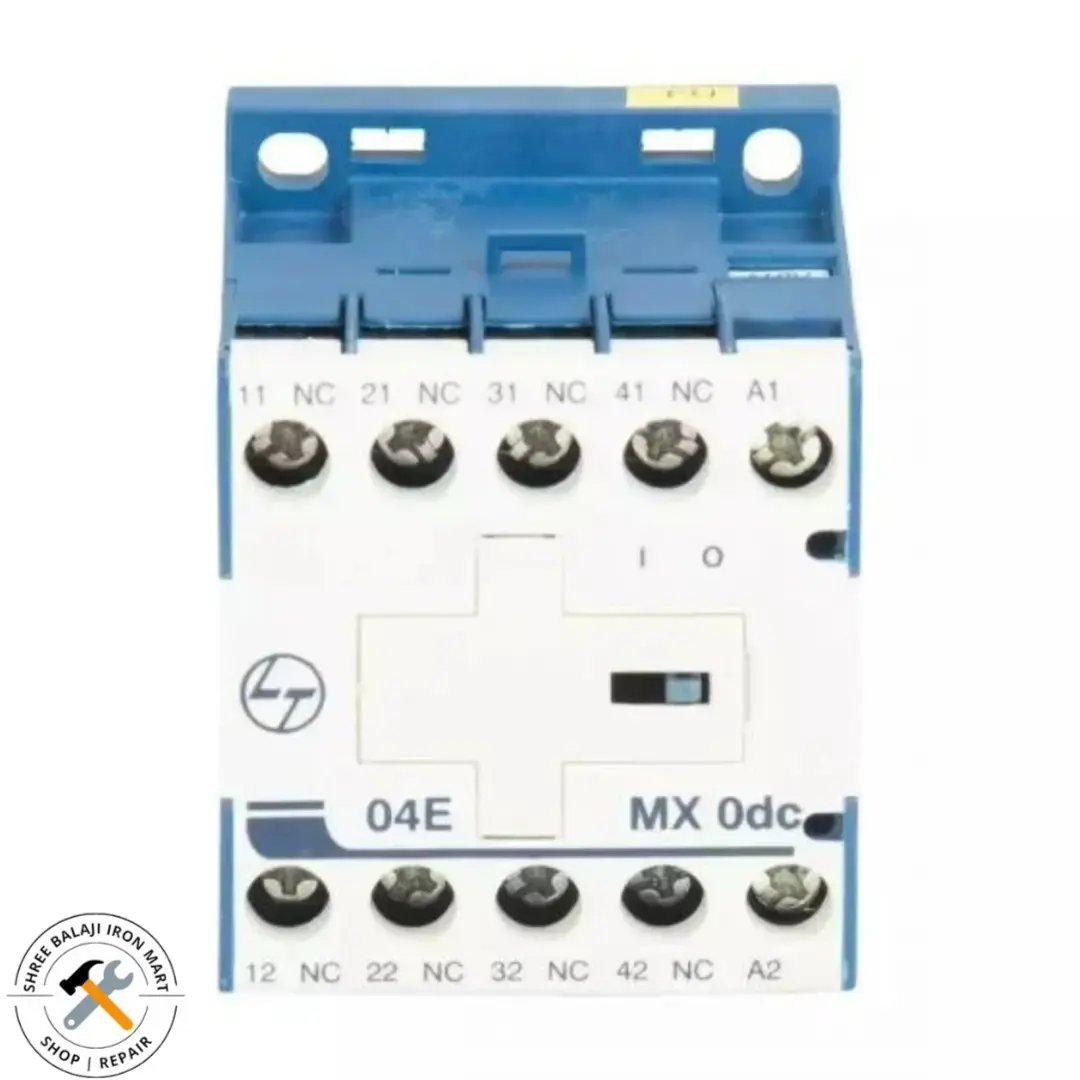

L&T MX0 DC Control Relay 8536 MX0 04E (4NC) CS94044 – 4NC Auxiliary Contactor

Buy L&T MX0 DC Control Relay 8536 MX0 04E (4NC), Cat. No. CS94044, an auxiliary control relay designed for electrical control and switching applications. The L&T MX0 04E features 4 Normally Closed (4NC) contacts, providing a four-pole auxiliary contact configuration for industrial control circuits. L&T documentation identifies CS94044 as the catalogue number for the DC-control MX0 04E version.

The MX0 DC control relay range is specified with standard 24V, 110V and 220V DC coil voltages and an AC-15 rated current of 4A at 415V. The MX0 range is available in a 45 mm width, and the DC version incorporates an inbuilt surge suppressor.

Technical Details

• Brand: L&T

• Product Type: Control Relay / Auxiliary Contactor

• Series: MX0

• Type: MX0 DC

• Model: MX0 04E

• Catalogue / Part Number: CS94044

• Product Classification: 8536

• Control Type: DC

• Contact Configuration: 4NC

• Normally Open Contacts: 0

• Normally Closed Contacts: 4

• Total Contacts / Poles: 4

• Utilization Category: AC-15

• Rated Current: 4A at 415V

• Standard DC Coil Voltages: 24V, 110V and 220V

• Rated Insulation Voltage (Ui): 690V

• Conventional Thermal Current (Ith): 10A

• Short-Circuit Protection: 10A gG fuse at 415V, according to available MX0 technical documentation

• Electrical Durability: 1.5 million operations under AC-15 at 415V

• Protection Degree: IP20

• Surge Protection: Inbuilt surge suppressor in MX0 DC

• Width: 45 mm

• Applicable Standards: IS/IEC 60947-5-1, IEC 60947-5-1 and EN 60947-5-1

• Typical Applications: Industrial control panels, automation systems, machine control, motor-control circuits and auxiliary switching

The L&T MX0 04E CS94044 is suitable for electrical control panels, industrial automation, machine-control systems, motor-control circuits and auxiliary switching applications. Purchase L&T CS94044 for industrial electrical requirements in Pune, Mumbai, Delhi, Bengaluru, Chennai, Hyderabad, Ahmedabad, Kolkata and other locations across India.
