15% OFFL&T 4 Pole Power Contactor Type MCX 22, 105A, FR3 – CS97017
Buy L&T 4 Pole Power Contactor Type MCX 22, 105A, FR3 – CS97017 for industrial power switching, electrical control and automatic source-transfer applications.

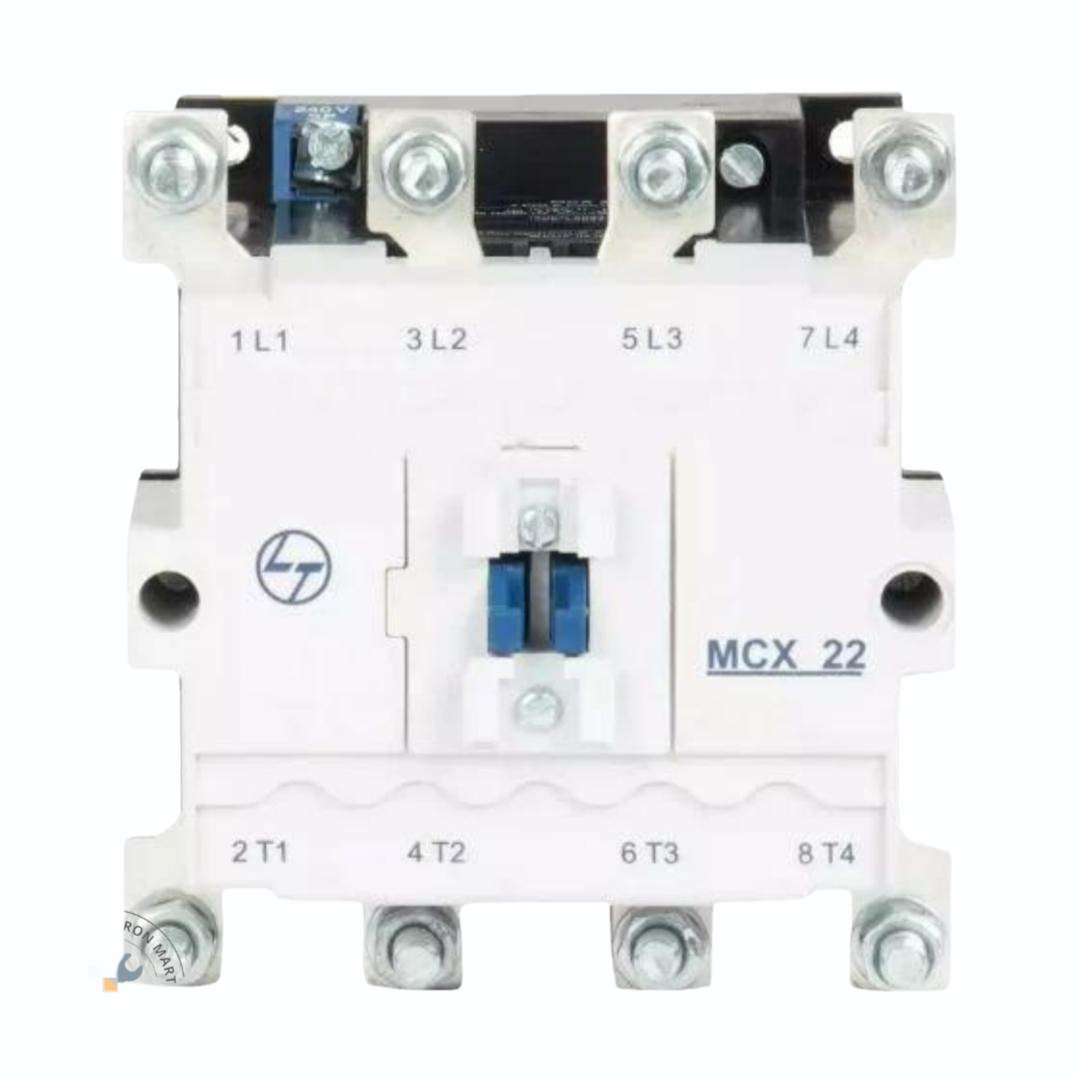

The L&T MCX 22 is a 4-pole power contactor designed for switching and controlling electrical power circuits. Current L&T-SuFin listings identify the MCX 22 as a 4-pole, 105A magnetic contactor, with variants available with 220V, 240V and 415V AC coils.
The CS97017 catalogue number corresponds to the MCX 22 model. L&T catalogue information lists the MCX series as conforming to IS/IEC 60947-4-1 and IEC 60947-4-1 and designed for 4-pole power-contact applications. The MCX range is used with automatic source-transfer systems for switching between mains and backup supplies such as DG sets and UPS systems.
Technical Details
- Brand: L&T
- Product Type: 4 Pole Power Contactor
- Series/Type: MCX
- Model: MCX 22
- Catalogue/Product Number: CS97017
- Number of Poles: 4 Pole
- Frame Size: Fr3 / Frame 3
- Rated Current: 105A
- Utilization Category: AC-1
- AC-1 Rating: 105A according to current L&T-SuFin/product listings.
- HSN/Chapter Classification: 8536
- Power Contact Configuration: 4 NO
- Standards: IS/IEC 60947-4-1 and IEC 60947-4-1.
- Rated Insulation Voltage (Ui): 690V according to published MCX technical data.
- Rated Operational Voltage (Ue): 415V according to published MCX technical data.
- Rated Impulse Withstand Voltage (Uimp): 8kV according to published MCX technical data.
- Rated Frequency: 50Hz for the listed variants.
- Contactor Type: Magnetic Contactor
- Mounting: Wall/base mounting depending on the specific variant.
- Country of Origin: India
- Application: Industrial power switching and electrical control
- Typical Use: Automatic source transfer, DG and UPS power-transfer applications
If you are looking to purchase an L&T 105A 4 pole power contactor, the MCX 22 / CS97017 can be considered for compatible industrial control and power-transfer applications.
