L&T 4 Pole Power Contactor Type MCX 13, 80A, FR2 – CS97015

Buy L&T 4 Pole Power Contactor Type MCX 13, 80A, FR2 – CS97015 for industrial power switching, electrical control and automatic source-transfer applications.

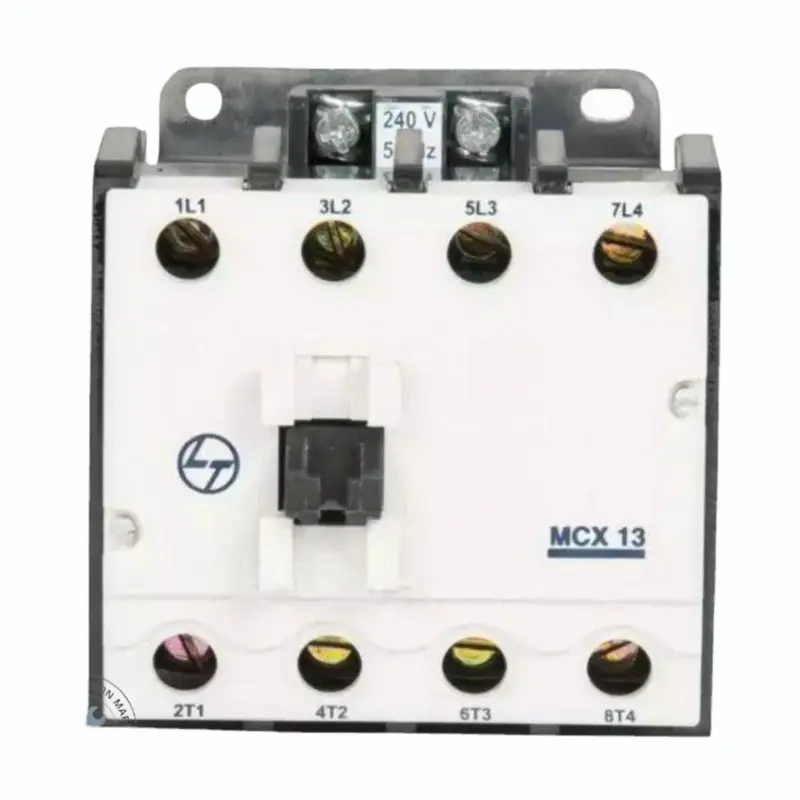

The L&T MCX 13 is a 4-pole power contactor with an 80A rating and Frame Size 2 (Fr2). L&T catalogue information identifies MCX 13 with catalogue number CS97015 and places it within the MCX 4-pole power contactor range. The published L&T technical catalogue specifies a range of 16A to 800A AC-1 for MCX 4-pole power contactors.

The MCX 13 is suitable for industrial electrical switching and power-control applications. It can be used in DG power-transfer systems, automatic source-transfer arrangements, UPS systems, electrical control panels and industrial power installations. Current product listings also identify CS97015 as an 80A, 4-pole, Fr2 contactor.

Technical Details

• Brand: L&T

• Product Type: 4 Pole Power Contactor

• Series/Type: MCX

• Model: MCX 13

• Catalogue/Product Number: CS97015

• Number of Poles: 4 Pole

• Frame Size: Fr2 / Frame 2

• Rated Current: 80A

• AC-1 Rating: 80A

• HSN/Chapter Classification: 8536

• Standards: IS/IEC 60947-4-1 & IEC 60947-4-1

• Rated Insulation Voltage (Ui): 690V

• Rated Operational Voltage (Ue): 415V according to published MCX technical data

• Rated Impulse Withstand Voltage (Uimp): 8kV according to published MCX technical data

• Preferred DG Rating: 50 kVA according to L&T catalogue data

• Contactor Type: Power Contactor / Magnetic Contactor

• Mounting: Wall/panel mounting depending on the specific variant

• Country of Origin: India

If you are looking to purchase an L&T 80A 4 pole power contactor, the MCX 13 / CS97015 is a suitable product to consider for compatible electrical applications. Customers can buy L&T MCX 13 contactors online in India, including searches targeting Pune, Mumbai, Nashik, Thane, Nagpur, Aurangabad, Ahmedabad, Surat, Vadodara, Delhi, Bangalore, Chennai and Hyderabad.
