L&T 4 Pole Power Contactor Type MCX 12, 63A, FR2 – CS97014

Buy L&T 4 Pole Power Contactor Type MCX 12, 63A, FR2 – CS97014 for industrial power switching, electrical control and automatic source-transfer applications.

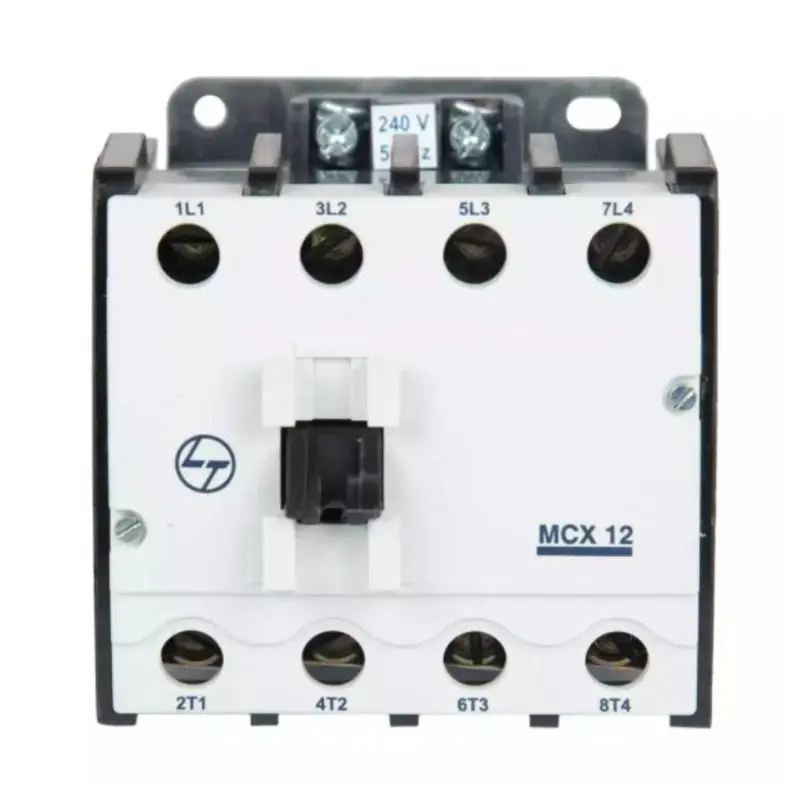

The L&T MCX 12 is a 4-pole power contactor with a 63A AC-1 rating, Frame Size 2 (Fr2) and catalogue number CS97014. L&T catalogue references list MCX 12 / CS97014 within the MCX 4-pole power contactor range. The range conforms to IS/IEC 60947-4-1 and IEC 60947-4-1.

The MCX 12 is suitable for electrical switching and control applications where 4-pole switching is required. It can be used in automatic source-transfer systems, DG power-transfer applications, UPS systems, electrical control panels and industrial power installations.

Technical Details

• Brand: L&T

• Product Type: 4 Pole Power Contactor

• Series/Type: MCX

• Model: MCX 12

• Catalogue/Product Number: CS97014

• Number of Poles: 4 Pole

• Frame Size: Fr2 / Frame 2

• Rated Current: 63A

• Utilization Category: AC-1

• AC-1 Rating: 63A

• HSN/Chapter Classification: 8536

• Power Contact Configuration: 4 NO

• Standards: IS/IEC 60947-4-1 and IEC 60947-4-1 PPune Integrated Solutions

• Rated Insulation Voltage (Ui): 690V according to published MCX technical data

• Rated Operational Voltage (Ue): 415V according to published MCX technical data

• Rated Impulse Withstand Voltage (Uimp): 8kV according to published MCX technical data

• Preferred DG Rating: 40 kVA according to L&T catalogue data PPune Integrated Solutions

• Typical Application: Power switching and electrical control

• Suitable For: Industrial control panels, DG systems, UPS systems, power-transfer systems and electrical installations

• Country of Origin: India

If you are looking to purchase an L&T 63A 4 pole power contactor, CS97014 is available through electrical product suppliers and online industrial marketplaces. Current product listings identify the MCX 12 as a 63A, 4-pole, Frame 2 power contactor.
