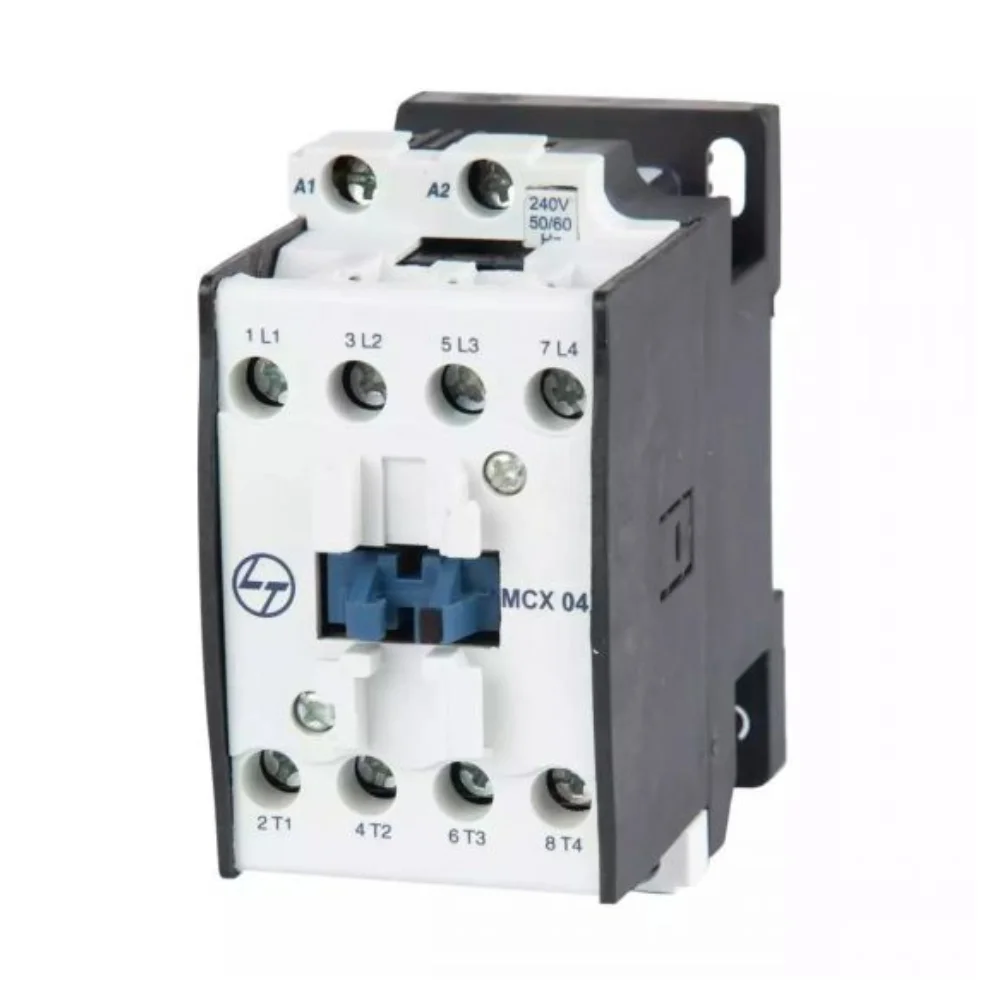

L&T 4 Pole Power Contactor Type MCX 04, 40A, FR1 – CS97012

The L&T MCX 04 is a 4-pole power contactor with a 40A AC-1 rating, Frame Size Fr1, and catalogue number CS97012. L&T catalogue references list MCX 04 / CS97012 in the MCX range of 4-pole contactors, which covers applications requiring switching of electrical power and source-transfer arrangements.

The MCX range is designed for applications including automatic source transfer, UPS systems, VFDs, soft starters, solar and wind inverters, street lighting, resistive loads and battery charging. The MCX 04 is specifically listed with a 40A AC-1 rating and Fr1 size.

Technical Details

• Brand: L&T

• Product Type: 4 Pole Power Contactor

• Series/Type: MCX

• Model: MCX 04

• Catalogue/Product Number: CS97012

• Number of Poles: 4 Pole

• Frame Size: Fr1 / Frame 1

• Rated Current: 40A

• Utilization Category: AC-1

• AC-1 Rating: 40A

• HSN/Chapter Classification: 8536

• Standards: IS/IEC 60947-4-1 & IEC 60947-4-1

• Power Contact Configuration: 4 NO, according to a current product listing

• Rated Insulation Voltage (Ui): 690V, according to current product listings IIndustry Buying

• Typical Application: Power switching and automatic source transfer

• Suitable For: Electrical control panels, DG/backup power systems, UPS systems and industrial installations

• Preferred DG Rating: 25 kVA according to L&T catalogue references

• Country of Origin: India

If you are looking to purchase an L&T 40A 4 pole power contactor, CS97012 can be used for suitable industrial and commercial electrical control applications. Customers can buy L&T contactors online in India, including Mumbai, Pune, Nashik, Thane, Nagpur, Aurangabad, Ahmedabad, Surat, Vadodara, Delhi, Bangalore, Chennai and Hyderabad.
