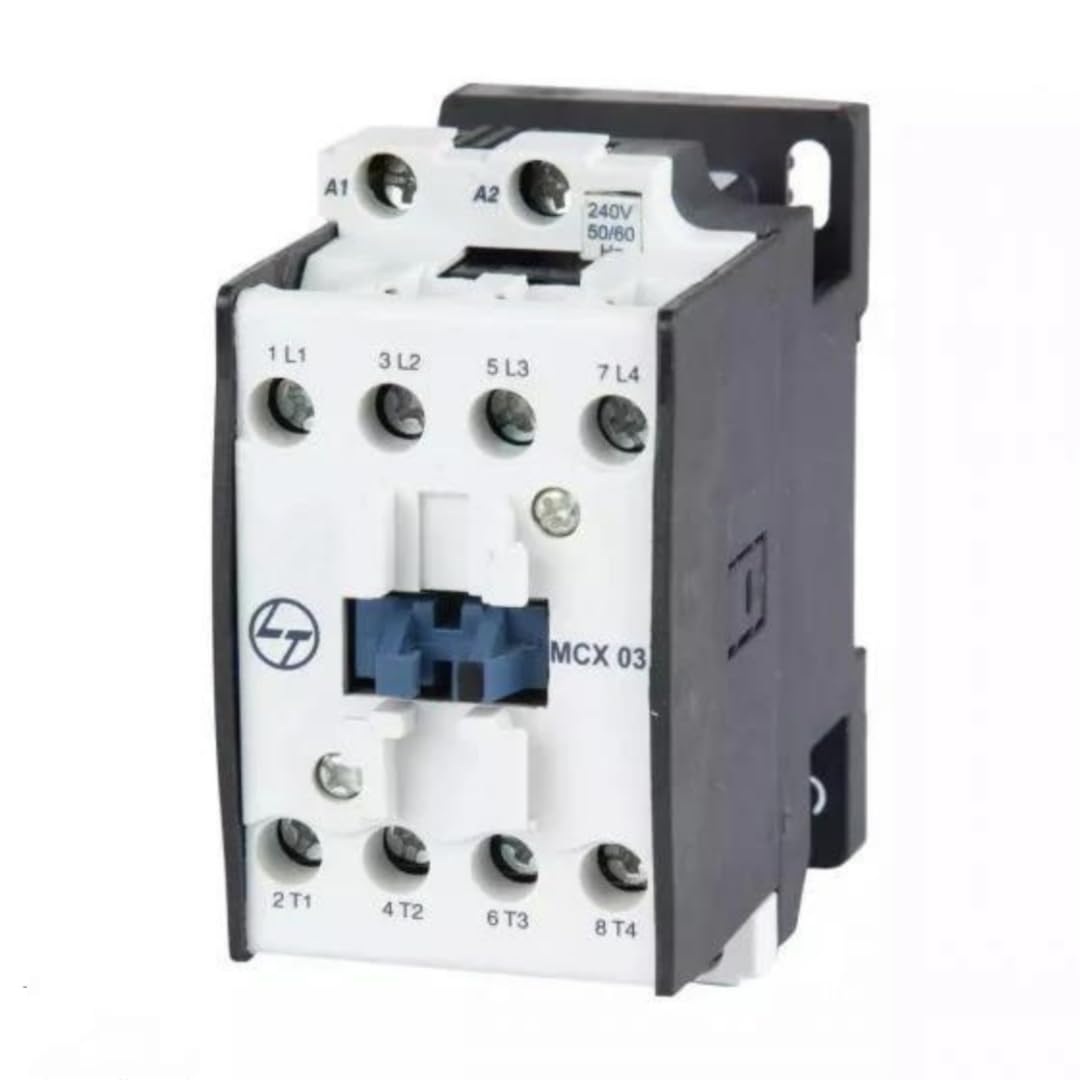

L&T 4 Pole Power Contactor Type MCX 03, 32A, FR1 – CS97011

The L&T MCX 03 is a 4-pole power contactor with a 32A AC-1 rating and Frame Size 1 (Fr1). L&T catalogue references list MCX 03 with catalogue number CS97011 in the MCX range of 4-pole power contactors.

The MCX range is designed for applications including AC-1/AC-3 switching, UPS systems, VFD and soft-starter applications, solar and wind inverters, street lighting, resistive loads and battery charging.

Technical Details

• Brand: L&T

• Product Type: 4 Pole Power Contactor

• Series/Type: MCX

• Model: MCX 03

• Catalogue/Product Number: CS97011

• Number of Poles: 4 Pole

• Frame Size: Fr1 / Frame 1

• Rated Current: 32A

• Utilization Category: AC-1

• AC-1 Rating: 32A

• HSN/Chapter Classification: 8536

• Standards: IS/IEC 60947-4-1 and IEC 60947-4-1 MMoglix+1

• Construction: Click-fit type construction

• Terminal Marking: Alpha-numeric terminal markings

• Indication: Front ON/OFF indication

• DC Rating: DC-rated variants available according to product information MMoglix

• Typical Application: Electrical switching and power control

• Suitable For: Industrial control panels, UPS systems, VFDs, soft starters, solar/wind inverters and resistive loads

• Country of Origin: India

The product is also listed with features such as front ON/OFF indication, alpha-numeric terminal markings, DC-rating availability and click-fit construction.

If you are looking to purchase an L&T 32A 4 pole contactor, CS97011 is suitable for a variety of industrial and commercial electrical control applications.
