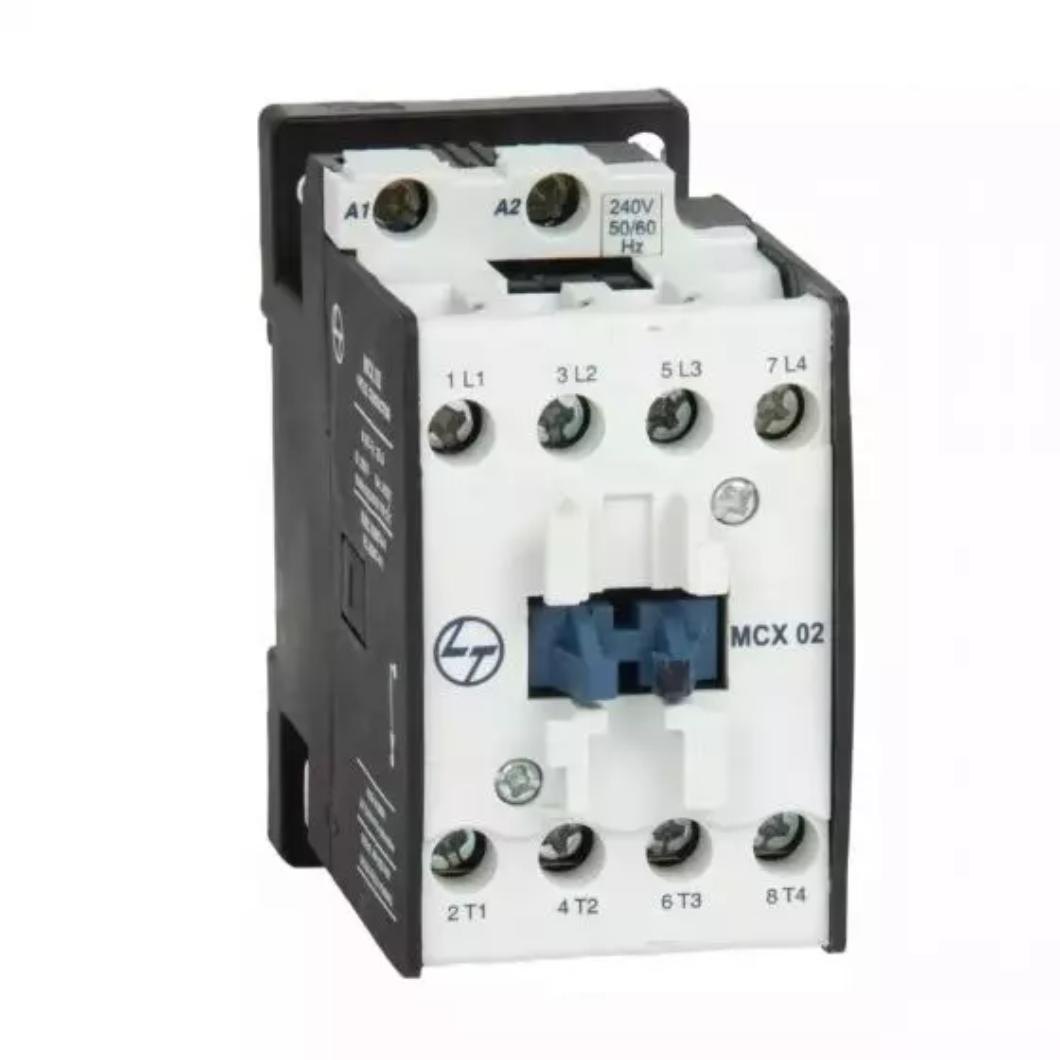

15% OFFL&T 4 Pole Power Contactor Type MCX 02, 25A, FR1 – CS97010
The L&T MCX 02 is a 4-pole power contactor with a 25A AC-1 rating and Frame Size 1 (Fr1). L&T catalogue information identifies MCX 02 with catalogue number CS97010 and specifies its use within the MCX range of 4-pole contactors. The MCX series is designed for applications such as transferring power between mains and backup supplies.
The contactor conforms to IS/IEC 60947-4-1 and IEC 60947-4-1. Published specifications list a 690V rated insulation voltage (Ui), 415V rated operational voltage (Ue) and 8kV rated impulse withstand voltage (Uimp) for the MCX 02.
Technical Details
- Brand: L&T
- Product Type: 4 Pole Power Contactor
- Series/Type: MCX
- Model: MCX 02
- Catalogue/Product No.: CS97010
- Number of Poles: 4 Pole
- Frame Size: Fr1 / Frame 1
- Rated Current: 25A
- Utilization Category: AC-1
- Rated Insulation Voltage (Ui): 690V
- Rated Operational Voltage (Ue): 415V
- Rated Impulse Withstand Voltage (Uimp): 8kV
- Standards: IS/IEC 60947-4-1 & IEC 60947-4-1
- HSN/Chapter Classification: 8536
- Application: Power switching and electrical control
- Typical Application: Automatic source transfer and backup power systems
- Suitable For: DG sets, UPS systems, electrical control panels and industrial power installations
- Country of Origin: India
- Mounting: Wall/panel mounting options are listed by current product sources.
If you are looking to purchase an L&T 25A 4 pole contactor, the CS97010 model is suitable for electrical panels, power-transfer systems, DG changeover applications and industrial control installations.
