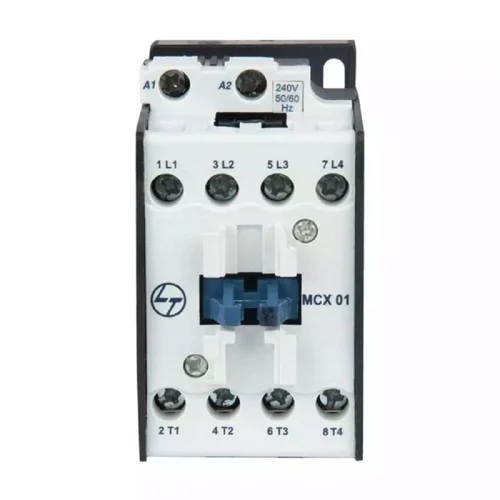

L&T 4 Pole Power Contactor Type MCX 01, 18A, FR1 – CS97009

The L&T MCX series is a range of 4-pole power contactors designed for switching applications, including use with automatic source-transfer arrangements for transferring power between mains and backup sources such as DG sets and UPS systems. L&T catalogue references identify MCX 01 / CS97009 as a Fr 1, 4-pole contactor.

This L&T MCX 01 contactor conforms to IS/IEC 60947-4-1 and IEC 60947-4-1 according to published L&T product-list references. The MCX range covers 4-pole contactors from 16A to 800A AC-1.

Technical Details

• Brand: L&T

• Product Type: 4 Pole Power Contactor

• Series/Type: MCX

• Model: MCX 01

• Number of Poles: 4 Pole

• Frame Size: Fr 1

• Product/Catalogue Number: CS97009

• Current Rating: 18A as supplied in the product specification

• Product Classification: Power Contactor

• HSN/Chapter: 8536

• Standards: IS/IEC 60947-4-1 and IEC 60947-4-1 RRaj Electricals

• Rated Insulation Voltage (Ui): 690V according to published MCX technical information SScribd

• Rated Operational Voltage (Ue): 415V according to published MCX technical information SScribd

• Rated Impulse Withstand Voltage (Uimp): 8kV according to published MCX technical information SScribd

• Application: Power switching, electrical control and source-transfer applications

• Typical Use: Mains-to-backup power transfer, DG/UPS changeover systems and electrical control panels

• Country of Origin: India

If you are looking to purchase an L&T 4 pole power contactor, CS97009 can be used for suitable electrical control and power-transfer applications. You can target customers searching to buy L&T contactors in India, including Mumbai, Pune, Nashik, Thane, Nagpur, Aurangabad, Ahmedabad, Surat, Vadodara, Delhi, Bangalore, Chennai and Hyderabad.
